X-Rite eXact Standard + Scan
Regular price
$6,655.00
$5,990.00
Sale
The eXact Standard is a spectrophotometer that ensures accurate printing of both CMYK and spot colors as well as leveraging industry standard for process control.
Measuring the Color Network from Ink Kitchen to Pressroom
X-Rite eXact™ is a next generation handheld color measurement solution that takes into account the new business needs and dynamics of a global supply chain. X-Rite eXact enables printers and packaging converters to truly understand, control and manage color across the entire color network, ensuring the utmost in color accuracy.
A Single Platform - 3 Models to Choose From
-
X-Rite eXact Densitometer:
For CMYK operations that want a set of traditional tools and the option to add more features as their requirements change.
-
X-Rite eXact Standard:
A spectrophotometer that ensures accurate printing of both CMYK and spot colors as well as leveraging industry standard for process control.
-
X-Rite eXact Advanced:
A spectrophotometer that ensures ink labs, quality control labs and manufacturing partners who must achieve the highest quality with the broadest toolset.
Aperture sizes to meet all applications:

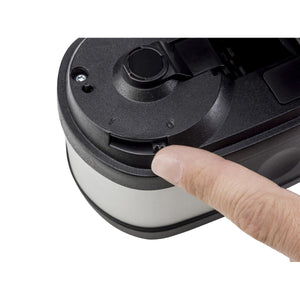

With a choice of 4 different aperture sizes (1.5, 2, 4 or 6 mm) operations can measure across a range of application in print and packaging.
Support for All Measuring Conditions
Using a simple process, eXact fully supports all measuring conditions with one platform, measuring M0, M2 and M3 with a single pass, saving the time and aggravation of measuring each individually.
Measurement Conditions & Filters
- M0: No Filter, UV included
- M1: Part 1, first in the industry with D50 (Daylight) through the entire visible spectrum
- M2: UV Cutoff Filter, UV excluded
- M3: Polarization Filter
With X-Rite eXact Get To Color in ONE CLICK
X-Rite eXact is an industry first - a technology platform that combines unique hardware and software into a single, integrated scalable solution that offers:

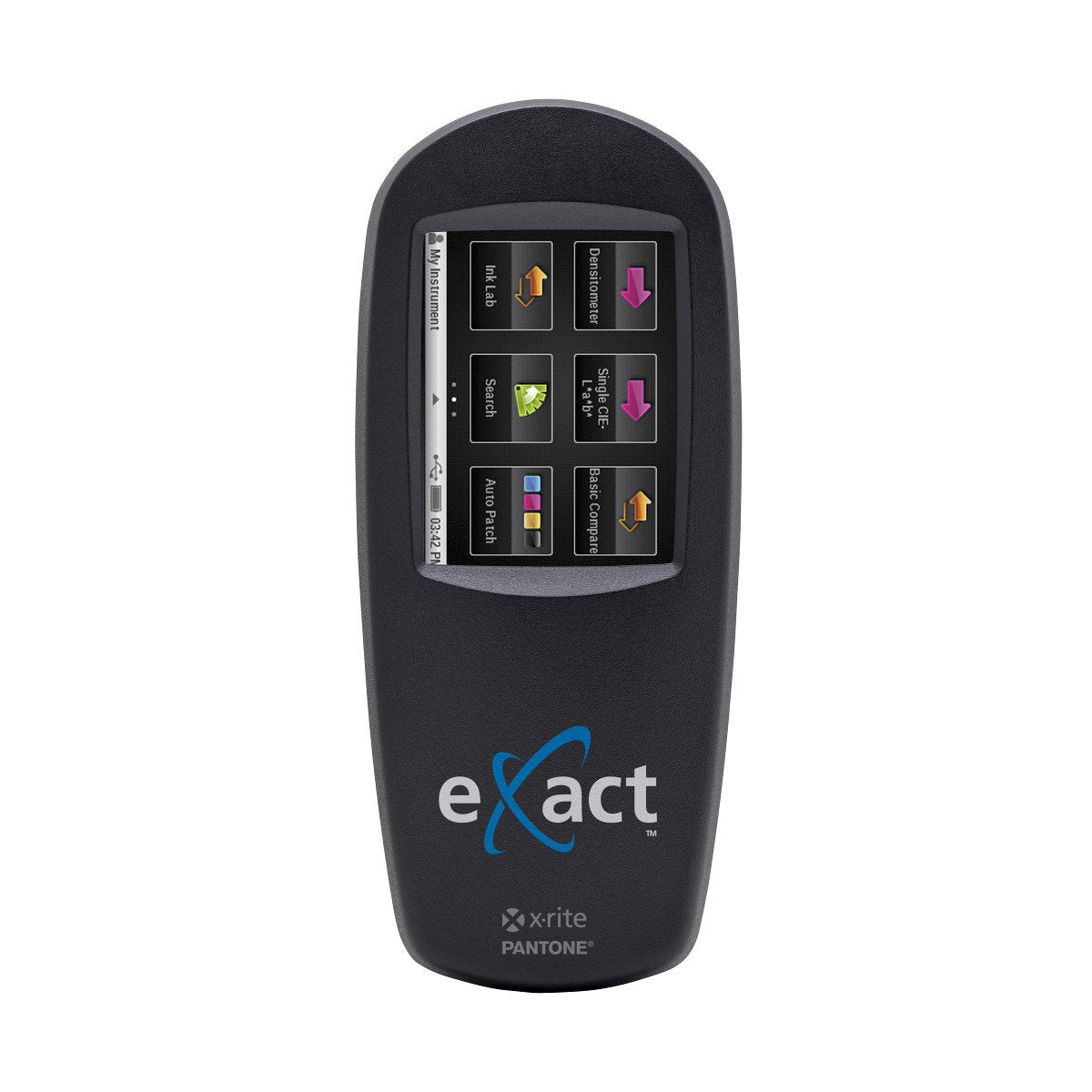

- An intuitive color touch-screen display, an industry first that simplifies device operation
- A range of product configurations that scale to meet business needs
- Color pass/fail reporting against industry standards, including ISO, JPMA, G7 and PSO
- Enhanced device capabilities through the use of Color iQC Print, PantoneLIVE, InkFormulation and/or NetProfiler
- Un-tethered calibration, specification and data capturing allows operators to work effectively anywhere on the production floor
- Embedded Pantone libraries, for access to industry-leading color reference standards
- Expanded on-device storage, allowing job presets and color libraries to be saved and ready for use, accessible with a single click
- BestMatch integrates multiple Pantone libraries or custom colors, offering a fast, easy way to accurately measure ink colors throughout the press run, with recommendations for density and other adjustments
Compare eXact Models
Documents:
eXact User Guide
FAQs:
Using the BestMatch Function
Patch / Aperture Size requirement
M0, M1, M2, and M3 measurement conditions
Firmware:
eXact Firmware v2.4.2142
Software:
eXact Manager v1.4.3258
WARRANTY
FEATURES
Specifications
| Short Term Repeatability - White | 0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds) |
|---|---|
| Short Term Repeatability - Density | '+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D) |
| Measurement Geometry | 45°/0° ring illumination optics, ISO 5-4:2009(E) |
| Inter-Instrument Agreement | Average: 0.25 ΔEab, Max: 0.45 ΔEab (for M3: 0.55 ΔEab) (Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°)) |
| Light Source | Gas filled tungsten (illuminant type A) and UV LED |
| Measurement Conditions | M0, M1 (part 1) , M2, M3 |
| Measurement Time | < 1 sec |
| Spectral Analyzer | DRS spectral engine |
| Spectral Interval | 10 nm |
| Spectral Range | 400 nm to 700 nm |
| Spectral Reporting | 400 nm to 700 nm with 10mm interval |
| Color Differences | CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy |
| Illuminants | A, C, D50, D55, D65, D75, F2, F7, F11, D12 |
| Observers | 2° and 10° |
| Humidity | 30 to 85% RH (non-condensing) |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Dimensions (length, width, height) | 18 cm x 7.8 cm x 7.6 cm 7.1" x 3.1" x 3.0" |
| Weight | 700 g 1.6 lbs. |
| 3rd Party Software Supported |
X-Rite ColorCert, X-Rite Color iQC, X-Rite InkFormulation, X-Rite NetProfiler and many others |
| Communication Interface | USB 2.0 Bluetooth (optional) - Class II |
| Configuration Options | Bluetooth, NetProfiler |
| Instrument Display | Color touch-screen, 320 x 240 pixels |
| Languages Supported | Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish |
| Software Development Kit |
Yes |
| Software Modes | Densitometer, Standard, Advanced |
| User Experience | Start-up wizard, configurable |
| Battery |
Lithium Ion, 7.4VDC, 2200mAh |
| Voltage | 12 VDC @ 2.5 A |
| Sample/Measurement | Max. 5000 samples |
| Standards | More than 20'000 standards (incl. data for all M modes) |
| Density Range | 0.0 D – 3.0 D |
| Density Standards | Status A, E, I, T and G |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2009 |
| BestMatch Feature | Yes |
| Calibration | Automatic on integrated white reference |
| Embedded NetProfiler Support | Yes |
| G7 Certification | Yes |
| NetProfiler Support | Yes |
| PantoneLIVE Support | Yes |
| Pass / Fail | Yes |
| Warranty | 1 year |

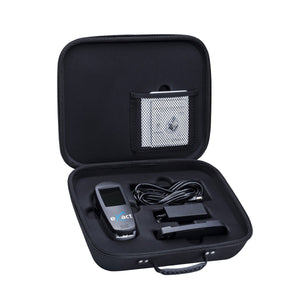

| What's Included? | USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate |
| Macintosh | MacOS X 10.8, 10.9, 10.10, 10.11 |
| Windows | Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit) |
Availability
Available for shipment in 3-5 business days
