X-Rite eXact Advanced + Scan
Regular price
$8,190.00
$7,370.00
Sale
The eXact Advanced is a spectrophotometer that ensures ink labs, quality control labs and manufacturing partners who must achieve the highest quality with the broadest toolset. Enables printers and packaging converters to truly understand, control and manage color across the entire color network, ensuring the utmost in color accuracy.
Measuring the Color Network from Ink Kitchen to Pressroom
X-Rite eXact™ is a next generation handheld color measurement solution that takes into account the new business needs and dynamics of a global supply chain. X-Rite eXact enables printers and packaging converters to truly understand, control and manage color across the entire color network, ensuring the utmost in color accuracy.
A Single Platform - 3 Models to Choose From
-
X-Rite eXact Densitometer:
For CMYK operations that want a set of traditional tools and the option to add more features as their requirements change.
-
X-Rite eXact Standard:
A spectrophotometer that ensures accurate printing of both CMYK and spot colors as well as leveraging industry standard for process control.
-
X-Rite eXact Advanced:
A spectrophotometer that ensures ink labs, quality control labs and manufacturing partners who must achieve the highest quality with the broadest toolset.
Aperture sizes to meet all applications:
With a choice of 4 different aperture sizes (1.5, 2, 4 or 6 mm) operations can measure across a range of application in print and packaging.
Support for All Measuring Conditions
Using a simple process, eXact fully supports all measuring conditions with one platform, measuring M0, M2 and M3 with a single pass, saving the time and aggravation of measuring each individually.
Measurement Conditions & Filters
- M0: No Filter, UV included
- M1: Part 1, first in the industry with D50 (Daylight) through the entire visible spectrum
- M2: UV Cutoff Filter, UV excluded
- M3: Polarization Filter
With X-Rite eXact Get To Color in ONE CLICK
X-Rite eXact is an industry first - a technology platform that combines unique hardware and software into a single, integrated scalable solution that offers:

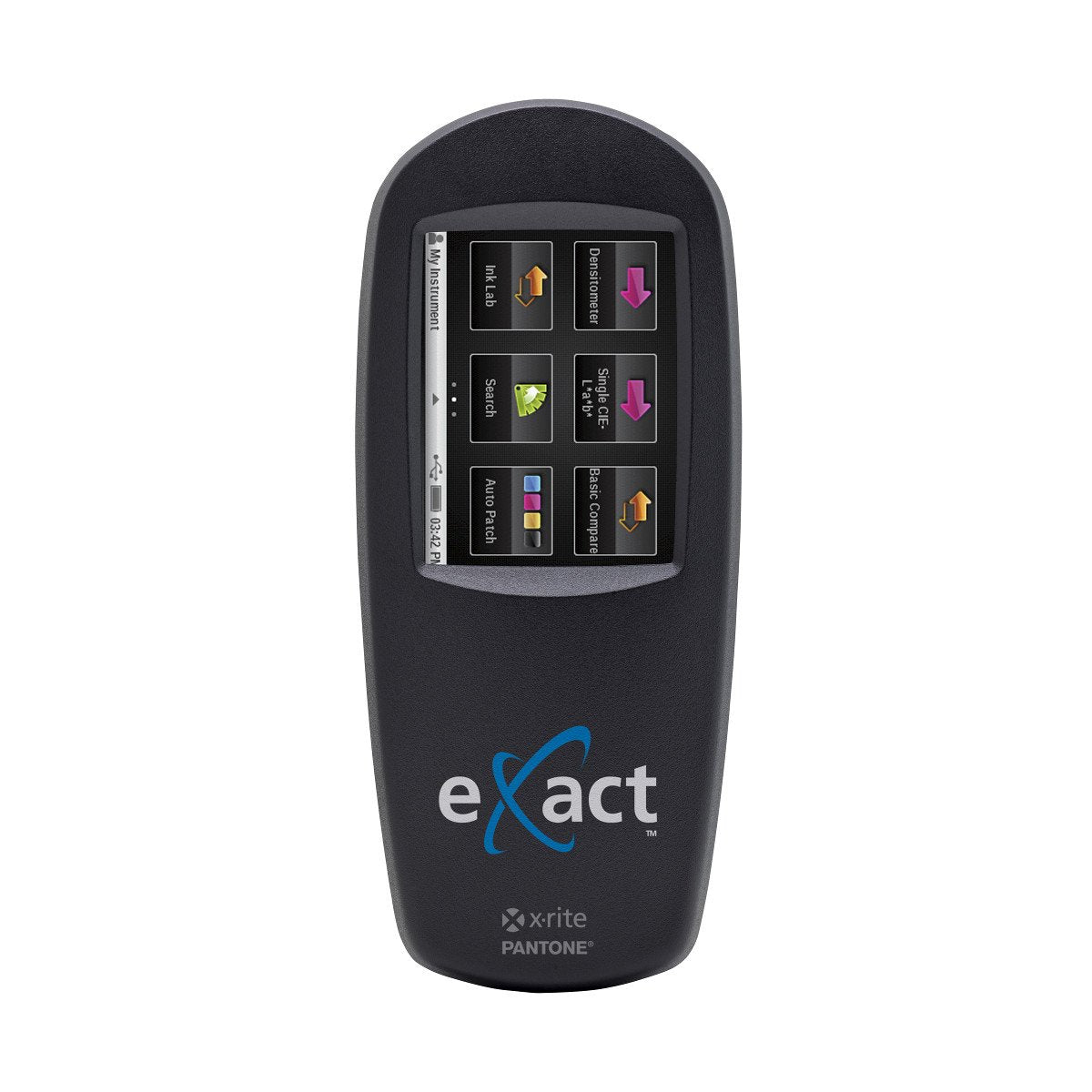

- An intuitive color touch-screen display, an industry first that simplifies device operation
- A range of product configurations that scale to meet business needs
- Color pass/fail reporting against industry standards, including ISO, JPMA, G7 and PSO
- Enhanced device capabilities through the use of Color iQC Print, PantoneLIVE, InkFormulation and/or NetProfiler
- Un-tethered calibration, specification and data capturing allows operators to work effectively anywhere on the production floor
- Embedded Pantone libraries, for access to industry-leading color reference standards
- Expanded on-device storage, allowing job presets and color libraries to be saved and ready for use, accessible with a single click
- BestMatch integrates multiple Pantone libraries or custom colors, offering a fast, easy way to accurately measure ink colors throughout the press run, with recommendations for density and other adjustments
Compare
Documents:
eXact User Guide
FAQs:
Using the BestMatch Function
Patch / Aperture Size requirement
M0, M1, M2, and M3 measurement conditions
Firmware:
eXact Firmware v2.4.2142
Software:
eXact Manager v1.4.3258
WARRANTY
FEATURES
Specifications
| Short Term Repeatability - White | 0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds) |
|---|---|
| Short Term Repeatability - Density | '+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D) |
| Measurement Geometry | 45°/0° ring illumination optics, ISO 5-4:2009(E) |
| Inter-Instrument Agreement | Average: 0.25 ΔEab, Max: 0.45 ΔEab (for M3: 0.55 ΔEab) (Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°)) |
| Light Source | Gas filled tungsten (illuminant type A) and UV LED |
| Measurement Conditions | M0, M1 (part 1) , M2, M3 |
| Measurement Time | < 1 sec |
| Spectral Analyzer | DRS spectral engine |
| Spectral Interval | 10 nm |
| Spectral Range | 400 nm to 700 nm |
| Spectral Reporting | 400 nm to 700 nm with 10mm interval |
| Color Differences | CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy |
| Illuminants | A, C, D50, D55, D65, D75, F2, F7, F11, D12 |
| Observers | 2° and 10° |
| Humidity | 30 to 85% RH (non-condensing) |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Dimensions (length, width, height) | 18 cm x 7.8 cm x 7.6 cm 7.1" x 3.1" x 3.0" |
| Weight | 700 g 1.6 lbs. |
| 3rd Party Software Supported |
X-Rite ColorCert, X-Rite Color iQC, X-Rite InkFormulation, X-Rite NetProfiler and many others |
| Communication Interface | USB 2.0 Bluetooth (optional) - Class II |
| Configuration Options | Bluetooth, NetProfiler |
| Instrument Display | Color touch-screen, 320 x 240 pixels |
| Languages Supported | Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish |
| Software Development Kit |
Yes |
| Software Modes | Densitometer, Standard, Advanced |
| User Experience | Start-up wizard, configurable |
| Battery |
Lithium Ion, 7.4VDC, 2200mAh |
| Voltage | 12 VDC @ 2.5 A |
| Sample/Measurement | Max. 5000 samples |
| Standards | More than 20'000 standards (incl. data for all M modes) |
| Density Range | 0.0 D – 3.0 D |
| Density Standards | Status A, E, I, T and G |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2009 |
| BestMatch Feature | Yes |
| Calibration | Automatic on integrated white reference |
| Embedded NetProfiler Support | Yes |
| G7 Certification | Yes |
| NetProfiler Support | Yes |
| PantoneLIVE Support | Yes |
| Pass / Fail | Yes |
| Warranty | 1 year |

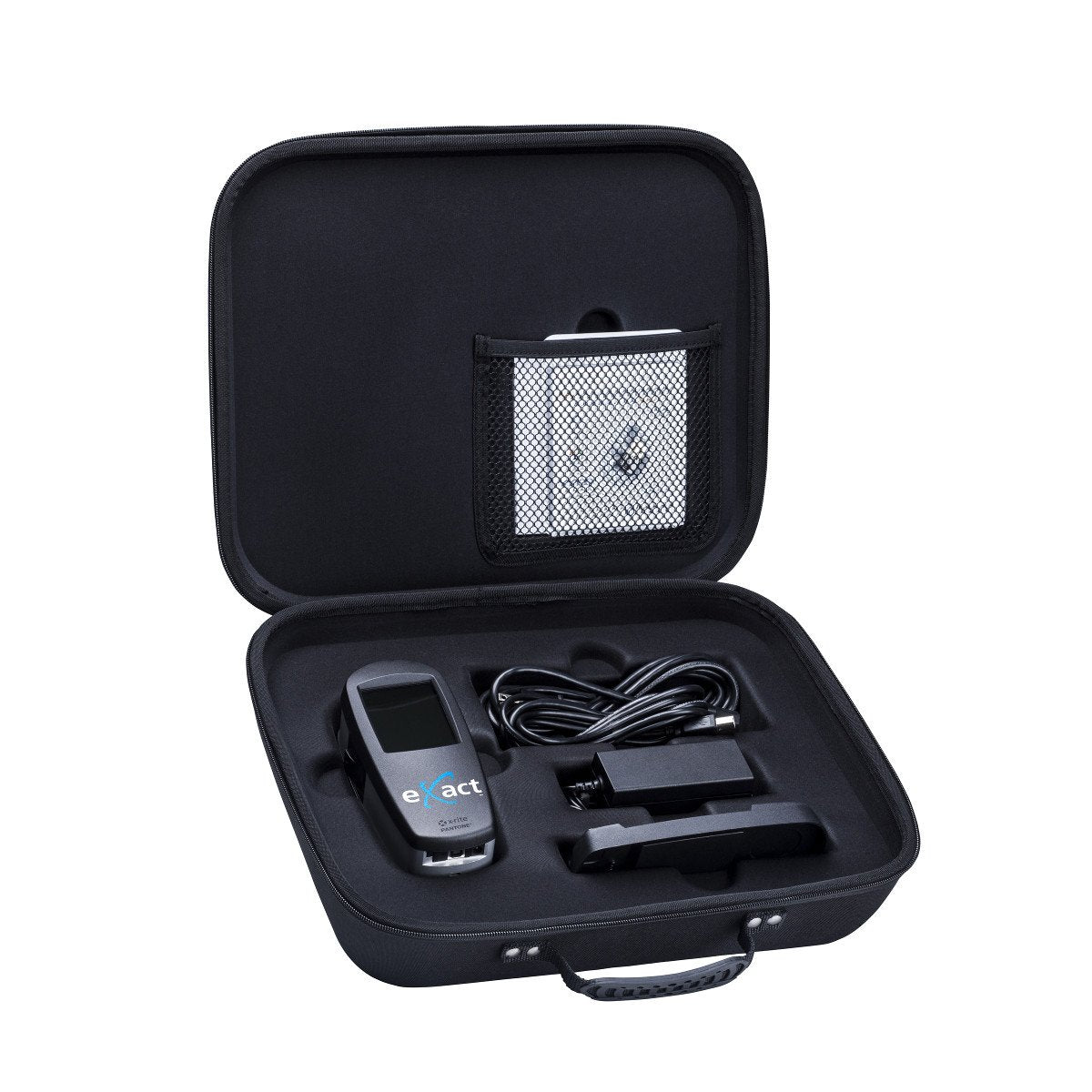

| What's Included? | USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate |
| Macintosh | MacOS X 10.8, 10.9, 10.10, 10.11 |
| Windows | Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit) |
AVAILABILITY
Available for shipment in 3-5 business days
